MI Line Module 2.4 Mtr Advanced Industrial PCB Assembly Conveyor System

Description

Product Details:

Material Aluminium

Brand RAVINDRA ELECTRONICS

Capacity (Ton) Upto 1 ton

Usage/Application Electronic assemblies

Material Handling Capacity PCB insertion

Length 10-20 feet,20-40 feet,40-60 feet

Voltage (V) 220V AC

Power Source Electric

Automation Grade Automatic

Frequency (Hz) 50 Hz

Structure Aluminium (40×40) or MS Powder-Coated Steel Pipe (40×40)

Country of Origin Made in India

Conveyor Length 2.4 Meter

Overall Width 600 mm

Working Height 840 mm

Total Height 1900 mm

PCB Width Range 50–350 mm Adjustable

Rear Channel Adjustable

Conveyor Speed Variable up to 3 m/min

Component Bins Adjustable Bin Trays with Arm

Display Board Steel Pin Board

Motor Drive Gear Motor with Speed Control

Lighting Integrated LED Tube Light (Without Wiring)

MI Line Module – 2.4 Mtr | Advanced Industrial PCB Assembly Conveyor System by RAVINDRA ELECTRONICS

Overview

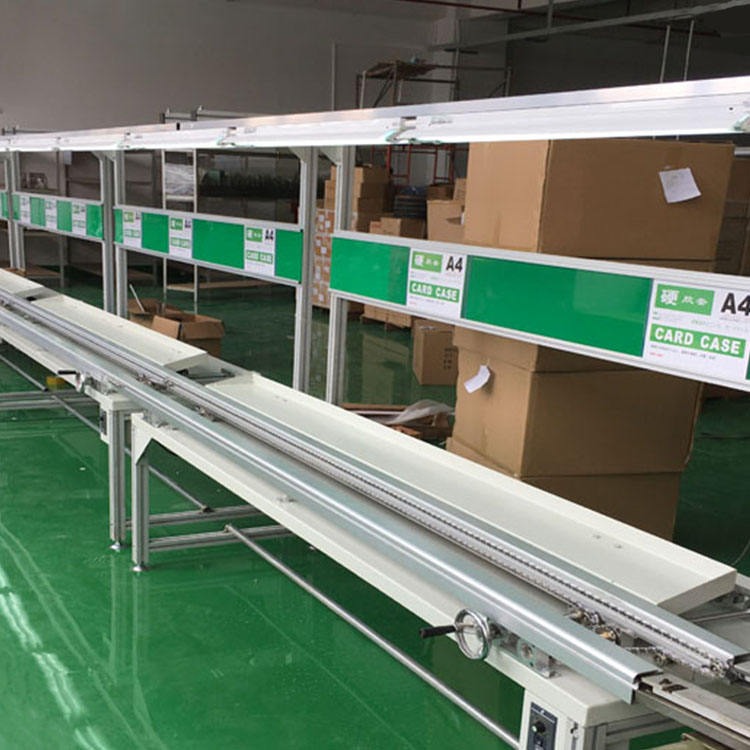

The MI Line Module – 2.4 Mtr is a high-precision single-sided chain conveyor system designed and manufactured by Estovir Technologies, a trusted leader in PCB assembly automation and electronics manufacturing equipment.

This industrial PCB conveyor enhances manual insertion (MI) lines, enabling operators to efficiently insert components into PCBs while maintaining smooth, ESD-safe, and vibration-free workflow during the entire assembly process.

Built with a Aluminium (40×40) or MS Powder-Coated Steel Pipe (40×40), the MI Line Module ensures long service life and corrosion resistance. Its adjustable PCB width (50 mm–350 mm) accommodates diverse production requirements, making it a top choice for automotive, telecom, consumer, and medical electronics manufacturers.

Key Features

Single-Side Operation for Maximum Efficiency

Enables smooth PCB handling and manual component insertion from one side.

Provides optimal working height (840 mm) to minimize operator fatigue and enhance productivity.

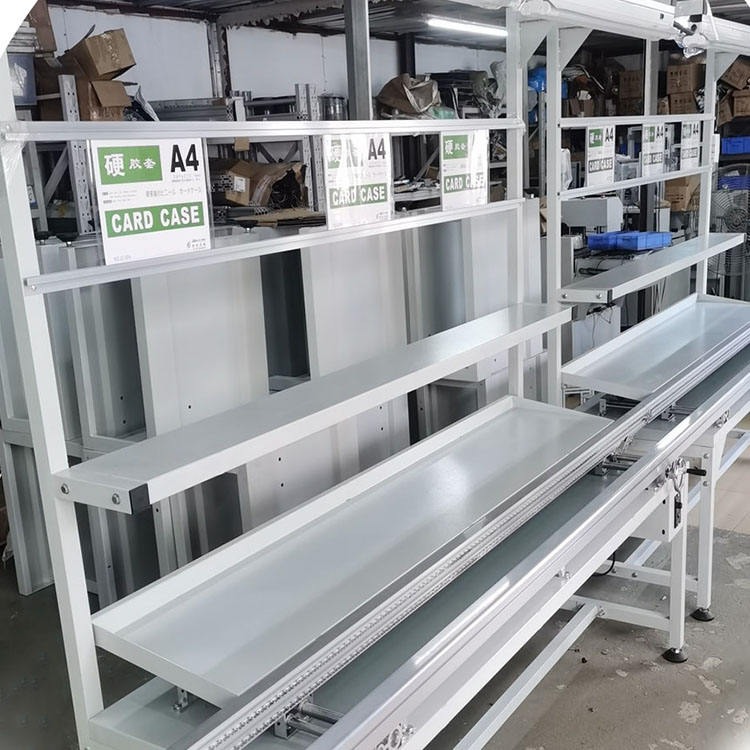

Ergonomic & Adjustable Component Trays

Features height-adjustable trays for organized component storage.

Trays accommodate multiple PCB sizes for flexible and efficient assembly.

Precision Variable Speed Control

Gear motor with integrated AC speed control for consistent motion.

Adjustable up to 3 m/min to match insertion, inspection, and wave soldering line speeds.

Integrated Safety & Electrical Protection

Equipped with emergency stop switches and power-failure interlock.

Includes MCB protection and LED lighting for safe, well-lit operation.

ESD-Safe Construction for Sensitive Components

Uses anti-static materials to eliminate electrostatic discharge risk.

Ensures product safety and compliance with international ESD standards.
